产品·介绍
Product introduce

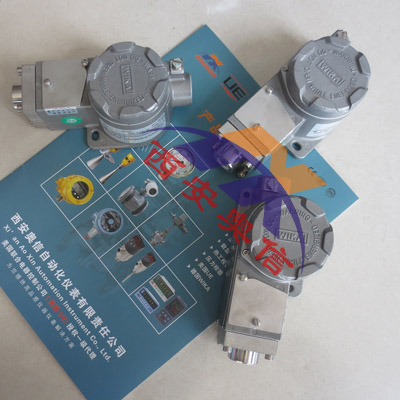

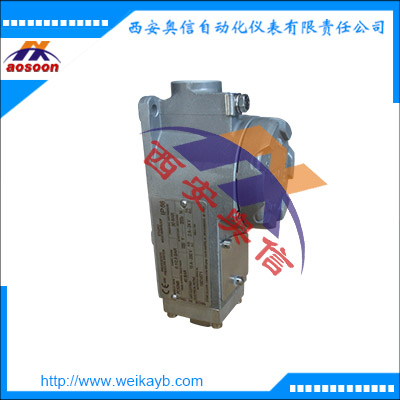

CELLA压力开关PCS2MA/4-25bar 油压开关 德国wika销售
PCS2MA详细参数
PCS2MA 0,8 … 6 bar 1/4 NPT-F, 1/2 -14 NPT-F
Compact Pressure Switch
PCS
switch enclosure: aluminium,copper-free
Measuring elements and wetted parts: Diaphragm Inconel + O-Ring FPM
Connection: Stainless steel AISI 316L
contact version: 1xSPDT, silver contact
setting range, working range, proof pressure: 0,8 … 6 bar, working range -1 … 10 bar, proof pressure 40 bar
set point definition: Set Point not defined
process connection: 1/4 NPT-F
electrical connection: 1/2 -14 NPT-F
standard direct or wall mounting, fixing bore on the case
Ingress Protection: IP66
brand: WIKA Instruments Italia
Specifications according to data sheet: PV 33.30
Repeatability of set point: ≤ 1% of end of setting range
功能特性
不锈钢或铝合金外壳，防护等级达IP 66，符合NEMA 4X
设定范围：0.02 ... 0.12 至 20...100 MPa，及真空量程-0.1 ... -0.02 MPa
本安型Ex i（可选）
高开关功率，多种电接点及电气接头可选
