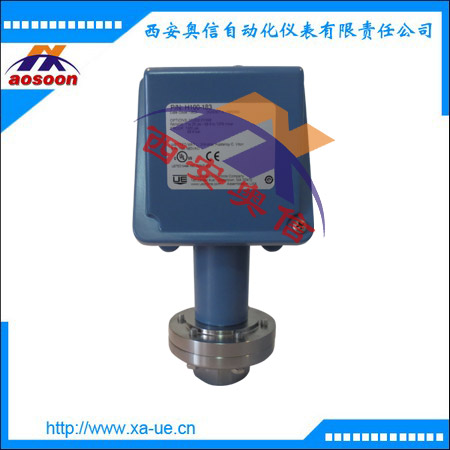

H100-185-XD002-XP112美国UE压力开关 全HC接口隔膜片 美国UE防腐开关

哈氏合金C防腐开关型号（氯离子含量高的废水等）
H100-183-XD002-XP112-1/2NPTF，范围：0.1~1.4bar
H100-184-XD002-XP112-1/2NPTF，范围：0.1~3.4bar
H100-185-XD002-XP112-1/2NPTF，范围：0.6~6.9bar
H100-186-XD002-XP112-1/2NPTF，范围：0.6~13.8bar
H100-188-XD002-XP112-1/2NPTF，范围：3.4~68.9bar
H100-189-XD002-XP112-1/2NPTF，范围：17.2~241.3bar
常规UE开关-316L不锈钢压力开关
H100-183  H100-184  H100-185
H100-186  H100-188  H100-189
特点
1，H100系列为不防爆系列。外壳防护等级IP66.
2，适用于高腐蚀性介质，比如污水，工业废水，RO反渗透水泵进出口等。
3，膜片和接头材质可选：316L,哈氏合金C,锰乃尔等。
4，螺纹安装方式，快速，经济，简约等优势。
型号及参数
型号      可调整设定范围                              死区                                  zui大压力               耐压**
Model   Adjustable Set Point Range        Deadband                         Over Range            Proof
             Low end of range on fall;                                                       Pressure*             Pressure**
             High end of range on rise range span range span
          psi                       bar                  psi                 bar                       psi       bar           psi        bar
316L stainless steel diaphragm (optional Hastelloy® C or Monel®); Viton® GLT O-Ring (optional Kalrez®, Silicone, Ethylene Propylene, or Aflas®); 316
stainless steel 1/2” NPT (female) pressure connection (optional Hastelloy® C or Monel®), large 0.72” orifice for clean-out purposes. Models 188 and
189 have a 316L stainless steel 1/2” NPT (female) pressure connection (NACE MR-0175 compliant)
183    1 to 20           0,1 to 1,4         0.3 to 2.5     20,7 to 172,4 mbar    500       34,5       1000     68,9
184    2 to 50           0,1 to 3,4         0.3 to 3        20,7 to 206,8 mbar    500       34,5       1000     68,9
185    4 to 100         0,3 to 6,9         0.5 to 6        34,5 to 413,7 mbar    500       34,5       1000     68,9
186    8 to 200         0,6 to 13,8       1 to 11          0,1 to 0,8                  500       34,5       1000     68,9
188    50 to 1000     3,4 to 68,9       25 to 125     1,7 to 8,6                   2000     137,9     7000     482,6
189    250 to 3500   17,2 to 241,3   50 to 300     3,4 to 20,7                 4000      275,8    7000     482,6
